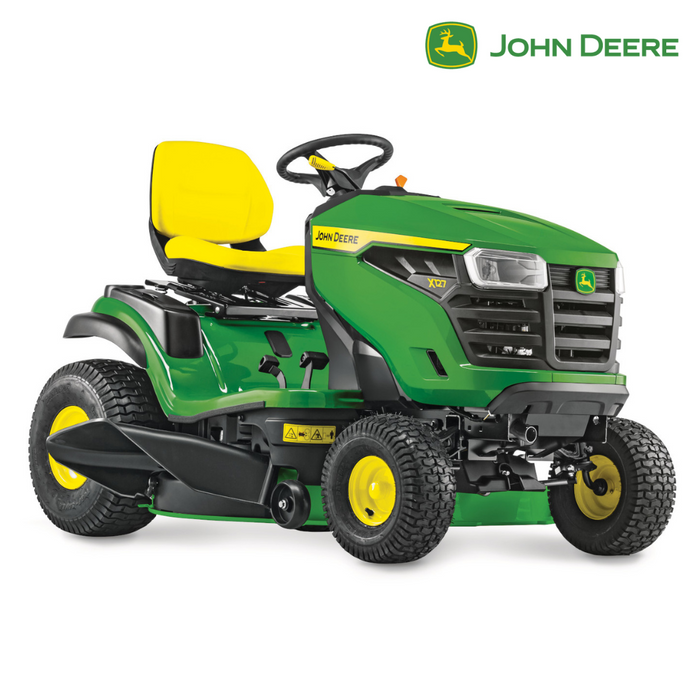

John Deere X127 Ride-On Mower

SKU 1J-X127
Save £950.00 Save £950.00
Original price £4,752.00
Original price £4,752.00 - Original price £4,752.00
Original price £4,752.00
Current price £3,802.00
£3,802.00 - £3,802.00
Current price £3,802.00

Delivery in 3-7 days


The John Deere X127 stands for dependability, durability, and power in every aspect of its design, including a fully welded steel frame and a cast-iron front axle.

An ergonomic operator station, a powerful engine with an infinite choice of ground speeds, and high-quality headlights make the John Deere X127 lawn tractor a breeze to operate and a joy to own.

Engine power CE-Nominal power (tested in accordance to SAE J1349), at 3050 rpm (±100): 12.36 kW
Oil change No-tools oil drain with replaceable filter
Engine manufacturer/model 40N877 (M40)
Transaxle type Hydrostatic, two-wheel drive
Transaxle control Two side-by-side pedals
Rear tires 20x8-8
Lift system type Spring-assisted hand-grip lever
Cutting width 107 cm   42 in.
Power CE-Nominal power (tested in accordance to SAE J1349), at 3050 rpm (±100): 12.36 kW
Displacement 656 cc   40 cu in.
Manufacturer/model 40N877 (M40)
Type Overhead valve (OHV), full-pressure lube, oil filter
Cylinders V-twin
Governor Mechanical
Choke/speed control Single lever with spring return on choke
Cooling method Air
Air cleaner Cartridge
Oil change No-tools oil drain with replaceable filter
Fuel system
Type Gasoline
Fuel delivery Pulse pump, carburetor
Fuel gauge On dash
Fuel tank location Rear
Fuel fill opening Center, 4.45 cm   1.75 in.
Fuel tank capacity 9 L   2.4 U.S. gal.
Electrical system
Battery 12 V   300 CCA
Charging system Regulated, 8 amp
Engine starter Bendix type
Hour meter Yes
Headlights Two standard, incandescent
Taillights or reflector No
Backup lights No
Rear work lights No
12-V outlet No
Type Hydrostatic, two-wheel drive
Control Two side-by-side pedals
Cruise control Yes
Oil cooler Fins and fan on transaxle
Oil filter Yes, not serviceable
Differential lock No
Forward speed 0-8.9 km/h   0-5.5 mph
Reverse speed 0-5.2 km/h   0-3.2 mph
Brakes Internal wet disk
Frame Full-length welded steel
Primer/paint E-coat/powder
Weight bracket No
Receiver hitch No
Front axle Cast iron
Spindle bushings No
Front tyres 15x6-6
Rear tyres 20x8-8
Hood material Molded-in color material reduces sound, will not rust or dent
Fender deck material Stamped steel
Floor mats Yes, with debris removing channels
Storage Storage compartment with cover
Service interval decal No
Fender handles/grips No
Cup holder Yes
Equipment mounting CargO Mount™ system
Maximum towing capacity 227 kg   500 lb
Type Manual, two-wheel steer
Four-wheel steer Not available on this model
Steering wheel Standard design, diameter: 30.5 cm   12 in.
Tilt steering wheel No
Turning radius 45.7 cm   18 in.
Uncut circle radius 63.5 cm   25 in.
Type Two piece
Seat back height 38 cm   15 in.
Armrests No
Fore-aft adjustment While seated, 14 cm   5.5 in.
Seat suspension Tilt, two coil springs
Lift system
Type Spring-assisted hand-grip lever
Hydraulic outlets No
Mower cut height 13 positions, 2.5-10.2 cm   1-4 in.
Cut height increments 0.64 cm   0.25 in.
Preset cut height No
Mower deck
Type Side discharge
Cutting width 107 cm   42 in.
Construction Stamped steel deck shell
Mower deck material Steel, 13 gauge   2.3 mm   0.090 in.
Mower wash port Yes
Mower drive system Manual PTO
Mower wheels Two
Mower wheel adjustment One bolt
Mower level adjustment Easy-level deck
Mower attachability
Type Slide under tractor
Front draft arms Spring pin
Rear draft arms Two spring clips
Mower wheels rotate No
Drive system Single belt
Backup protection Reverse Implement Option (RIO)
Safety video No
Optional equipment
Rear bagger Two-bag, 230 L   6.5 bu
Mulching system Mulch cover or high-performance plug
Front blade 125 cm   49 in.
Rotary broom 120 cm   47 in.
Spreader Tow-behind only, 80 kg   175 lb
Front bumper Styled front bumper
Other equipment Rear weight bracket
Height 1118 mm   44 in.
Overall length 1770 mm   69.7 in.
Wheelbase 1242 mm   48.9 in.
Width with mower 1402 mm   55.2 in.
Width with mower (deflector raised for storage) 1181 mm   46.5 in.
Width without mower 996 mm   39.2 in.
Weight With mower deck, no fuel: 205 kg   453 lb
