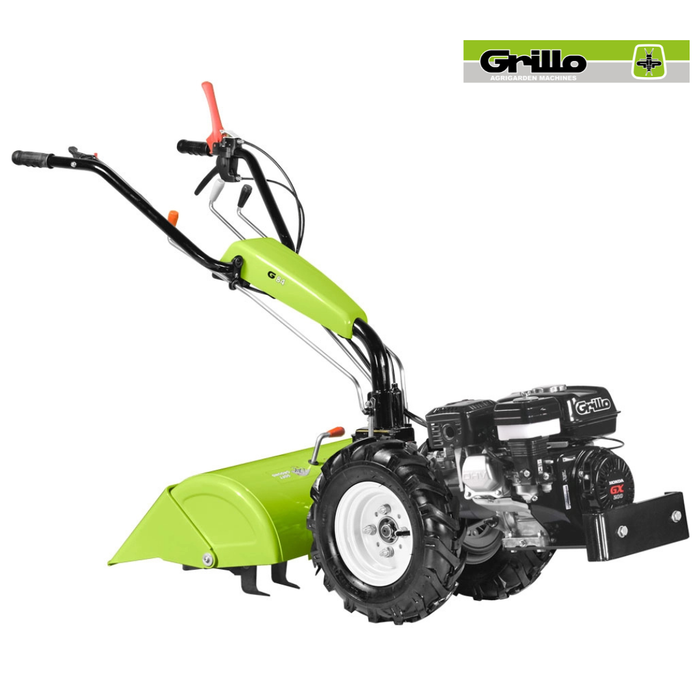

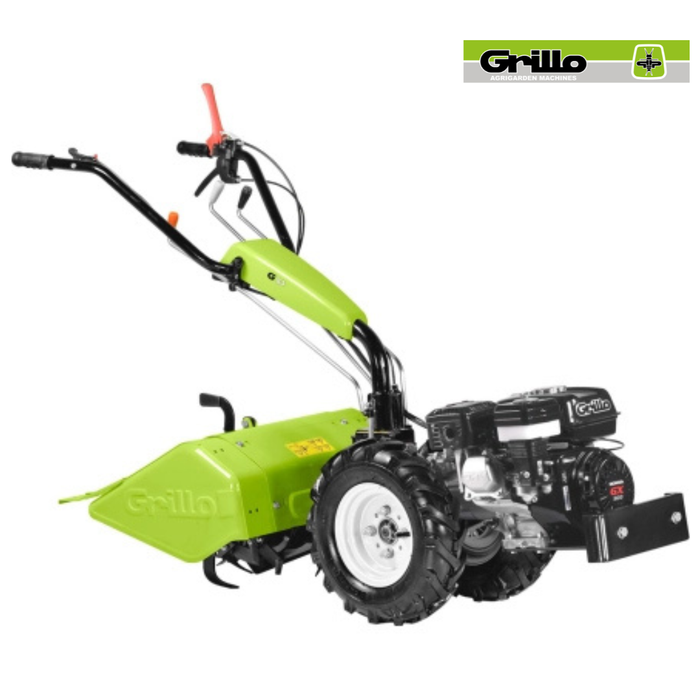

Grillo G 84 Walking Tractor
In Stock
Grillo Walking Tractor
REDUCED TO CLEAR
The Grillo G84 is an ideal walking tractor for works in horticulture, orchards, vegetable plots and in gardening. It is a robust machine ideal to work on any kind of soil.
G84 is fitted with a 4 speed-gearbox in oil-bath, with 2 forward and 2 reverse gears.

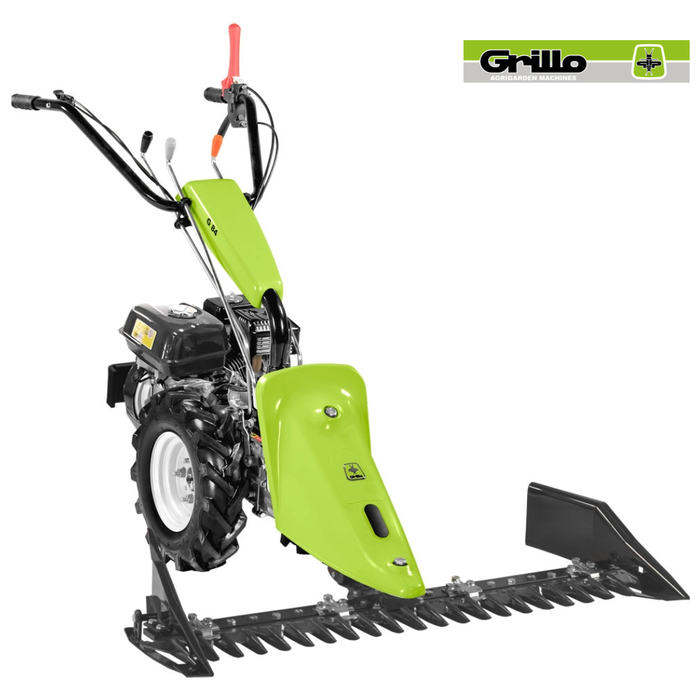

Several front and rear-mounted implements can be applied to this machine, due to its 180° reversible handlebar, such as standard rotary tiller, counter – rotating tiller, sickle bars and furrow behind the rotary tiller.
These attachments can be connected to the machine through a solid flanged coupling.
DESCRIPTION
The G 84 can be fitted with a 196 cc, 5.5 HP petrol engine, equipped with a robust front bumper.

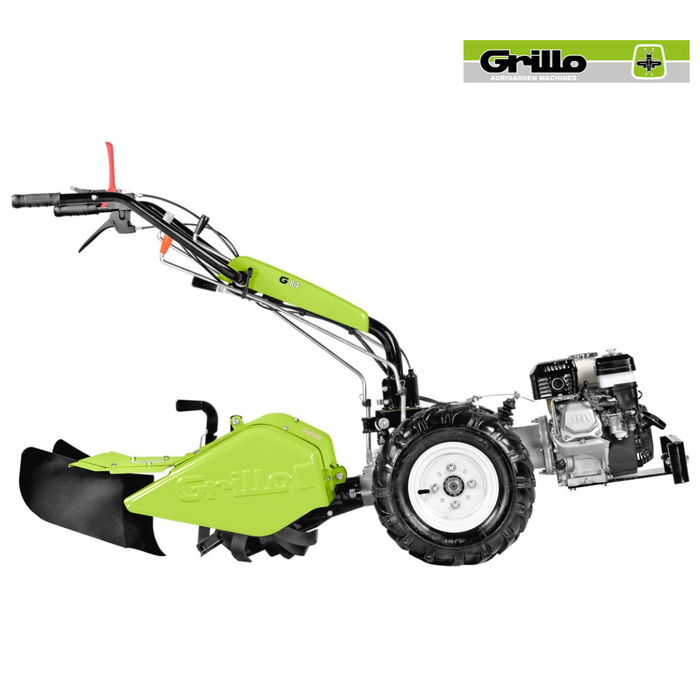

Two rotary tillers are available for the G 84. Adjustable tiller with standard rotation.
The tilling depth is adjusted using the practical outer lever. To achieve better results adjust the central knife into three different setting: hard, medium and soft/sandy soils.
The double rotation tiller combines the advantages of both the standard and the contra-rotating tiller. The double rotation tiller is equipped with a control to change the rotations of the tines, making it therefore possible to till any kind of soil (hard soil as well as soft and sandy soil). The “floating” tines perfectly till the soil both in standard and contra-rotation system.
All the tillers available have a robust cast-iron carter and are fitted with a wrapping hood that holds the soil and allows it to be crushed further.
Active clutch: when the lever is released the wheels and the attachment stop immediately
whilst the engine keeps on running. Forward gear and PTO are engaged independently from each other. A safety device prevents the tiller from being activated when reverse gear
is engaged.
SPECIFICATION
| Engine | Honda GX200 OHV Start manuale a fune autoavvolgente Supply benzina 196 cc, 1 Cylinder 5.5 HP, 4.1 KW Raffreddato ad aria Filtro aria a bagno d'olio |
| Transmission | With oil bath gears |
| Gearbox | With clutch engagement. The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears |
| Reverse gear unit | By lever |
| Clutch | Conic active |
| P.T.O. | 965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version. |
| Service brake | Brake drum |
| Handlebar | Height and side adjustment. Fitted on anti-vibration blocks |
| External sizes of the wheels | 42 or 37 cm with 4.00-8 wheels |
| Standard rotary tiller | Adjustable rotary tiller with x 4 tines. Working width 580 mm |
| Hoes system diametre | 32 cm |
| Working width | Adjustable at 370 and 470 mm (680 mm with extensions) |
| Working depth | 16 cm |
