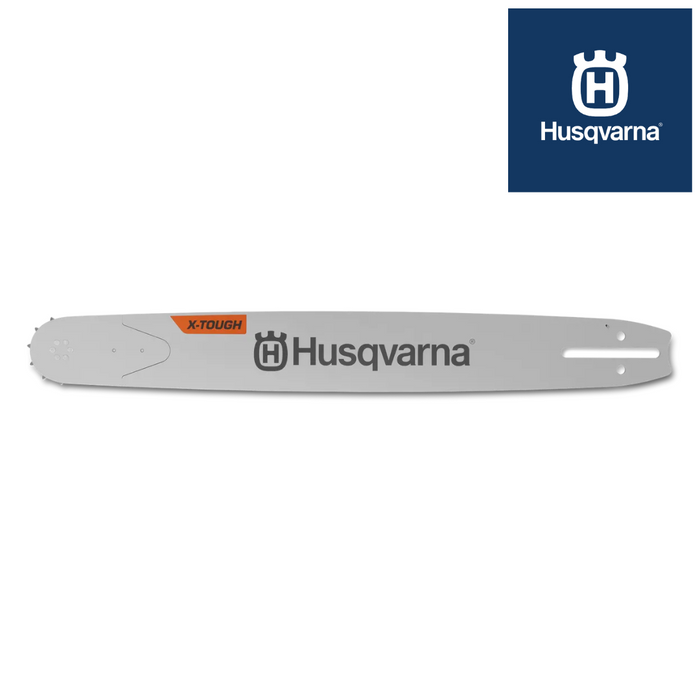

Husqvarna X-TOUGH Solid bar 3/8" 1.5mm/.058" RSN Large Bar Mount
- Solid bar type
- Replaceable sprocket nose
- HLM bar mount
DESCRIPTION
Husqvarna X-Tough RSN (Replaceable Sprocket Nose) bars are our toughest sprocket nose bars.
Thanks to the design, characterized by a solid steel body with increased rail hardness and the optimised oil hole, the maintenance effort is reduced, and high productivity can be achieved. The load is transferred to the high-quality roller bearing with supporting shields, resulting in less friction and a prolonged lifetime.
The robust and patented RSN shape and the triple-rivet mount offers high durability and makes the bar less sensitive to abuse.
A replacement tip is available as a spare part.
SPECIFICATION
| Product data |
BAR X-TOUGH 16 RSN 3/8" 1.5 LM 60DL
Art no: 596 69 11‑60
|
BAR X-TOUGH 18 RSN 3/8" 1.5 LM 68DL
Art no: 596 69 11‑68
|
BAR X-TOUGH 20 RSN 3/8" 1.5 LM 72DL
Art no: 596 69 11‑72
|
BAR X-TOUGH 22 RSN 3/8" 1.5 LM 76DL
Art no: 596 69 11‑76
|
BAR X-TOUGH 24 RSN 3/8" 1.5 LM 84DL
Art no: 596 69 11‑84
|
BAR X-TOUGH 28 RSN 3/8" 1.5 LM 92DL
Art no: 596 69 11‑92
|
BAR X-TOUGH 36 RSN 3/8" 1.6 LM 115DL
Art no: 596 69 12‑15
|
BAR X-TOUGH 20 RSN 3/8" 1.6 LM 72DL
Art no: 596 69 12‑72
|
| Bar length (inch) | 16 in | 18 in | 20 in | 22 in | 24 in | 28 in | 36 in | 20 in |
|---|---|---|---|---|---|---|---|---|
| Bar length | 40 cm | 45 cm | 50 cm | 55 cm | 60 cm | 70 cm | 90 cm | 50 cm |
| Chain pitch | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" |
| Gauge | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.6 mm | 1.6 mm |
| Bar type | Solid | Solid | Solid | Solid | Solid | Solid | Solid | Solid |
| Nose type | Replaceable sprocket nose | Replaceable sprocket nose | Replaceable sprocket nose | Replaceable sprocket nose | Replaceable sprocket nose | Replaceable sprocket nose | Replaceable sprocket nose | Replaceable sprocket nose |
| Bar mount type | HLM | HLM | HLM | HLM | HLM | HLM | HLM | HLM |
