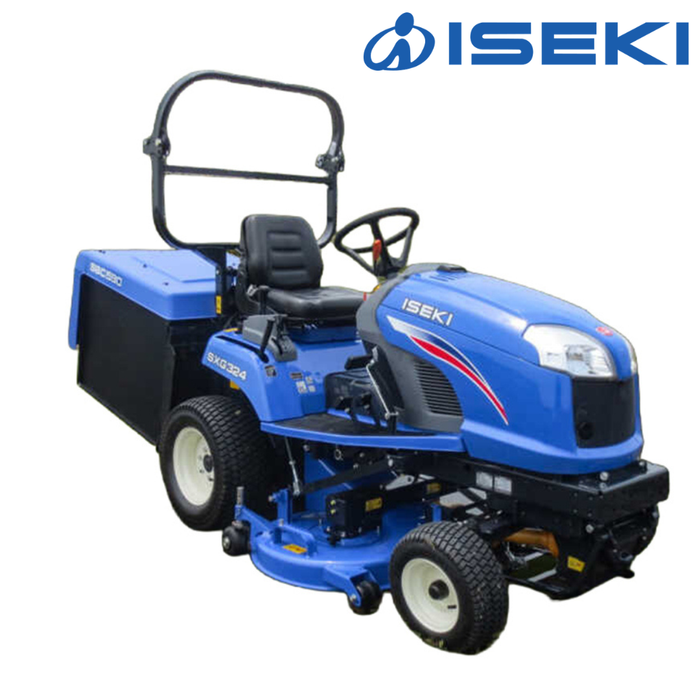

Iseki SXG324 Ride-On Mower
- 19.4hp 1,123cc three-cylinder diesel engine
- Supplied as a bare machine for flexible configuration
- Compatible with 48" rear discharge cut-and-drop deck
- Compatible with high-tip or low-tip grass collection systems
- Hydrostatic transmission with two-pedal control
- Compact design with excellent manoeuvrability
- Comfortable operator platform with ergonomic controls
- Road homologation kit available for road-legal transport between sites
DESCRIPTION
The Iseki SXG324 is a commercial diesel ride-on mower designed for professional contractors, local authorities, estates and sports facilities. Supplied as a bare machine, it can be configured with a range of cutting decks and collection systems to suit a variety of mowing applications.
Powered by a 21.6hp 1,123cc three-cylinder diesel engine, the SXG324 delivers smooth, fuel-efficient performance with low vibration, outstanding reliability and exceptional operator comfort.
Whether you need a high-capacity collector for pristine lawns or a rear discharge deck for cut-and-drop mowing, the SXG324 can be configured to suit your business. It is compatible with a 48" shaft-driven rear discharge deck or high-tip and low-tip collection systems, making it suitable for everything from parks and sports grounds to large estates and commercial landscapes.
For contractors and local authorities, the optional road homologation kit allows the SXG324 to be registered for road use (subject to local regulations), making it easy to travel safely and efficiently between jobs without the need for a trailer.
SPECIFICATION
| Machine | |
| Power | |
| Engine Type | Diesel - Indirect injection, overhead valve |
| Displacement | 1123cc |
| No of Cylinders | 3 |
| Power | 14.6kW (19.4hp) at 2,600rpm |
| Fuel Capacity | 21ltr Diesel or HVO |
| Transmission | |
| Type | HST (hydrostatic transmission) 2WD |
| Rear Axle | Chain Drive to each wheel |
| Steering System | Power steering |
| PTO | Front - 1750 min-1 (rpm) |
| Brakes | |
| Type | Dry internal-shoe expanding |
| No. of Brakes |
1 (before diff) 2 (after diff) Road Hom. |
| Tyres | |
| Front | 16 x 6.50-8 |
| Rear | 23 x 10.50-12 |
| Mower Deck Options | |
| Model | SRM48 |
| No. of Blades | 3 |
| Discharge | Rear discharge (non-collect model only) |
| Cutting Width | 1.22m (48") |
| Cutting Height | 25mm (1") - 115mm (4.5") |
| Adjustments | 7 Stage via clevis pin and stepless dial |
| Model | SCMB48 |
| No. of Blades | 2 |
| Discharge | Centre Rear |
| Cutting Width | 1.22 (48") |
| Cutting Height | 25mm (1") - 115mm (4.5") |
| Adjustments | 7 Stage via clevis pin and stepless dial |
| Collector | |
| Model | SBC590 X Low Dump |
| Capacity | 590ltr |
| Type | Blowerless, centre collection, low dump |
| Dump System | Hydraulic |
| Height of Dump | 0.9m |
| Weight | 115kg |
| Model | SBC590 X High Dump |
| Capacity | 650ltr |
| Type | Blowerless, centre collection, high dump |
| Dump System | Hydraulic |
| Height of Dump | 2.08m |
| Weight | 210kg |
